Plastic Washers

Flat plastic washers are used in a myriad of applications ranging across all industries. Broadly we find the product acting generally in one of three functions: Sealing, spacing, or bearing. The material choice is dependent on the application needs.

Sealing: A common use is to seal gases and fluids with flat plastic washers for seals in pumps, valves, dispensers, batteries, plumbing, pool and spa, automotive, fire extinguishers, food handling, fuel injectors, compressors, boilers, beverage dispensing, etc. For these applications the critical need is environmental resistance to the fluid be used at the operating temperature. Below is how various plastic materials perform in hydrocarbon environment. You will see that crystalline materials generally do better than amorphous plastics.

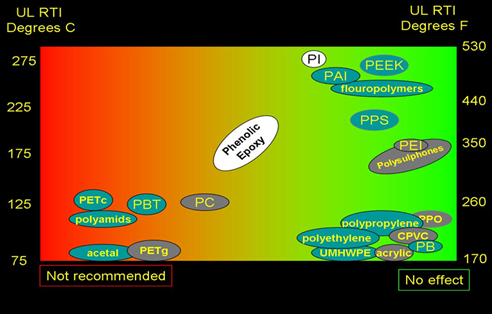

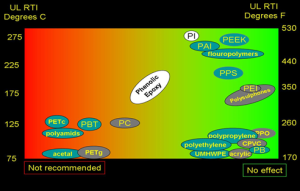

Plastic Washers - Graph 2

On the other hand plastics that don’t resist grease and oil may perform better than many crystalline materials in acidic or basic aqueous environments. Polypropylene handles the hot acid of a car battery in under hood conditions that would dissolve nylon. Likewise Acetal can perform in fuel system, but would fall apart in hot ethylene glycol where polyethylene is far superior. So for sealing it is an issue of studying the chemical resistance and temperature capability of various materials in the environment of interest.

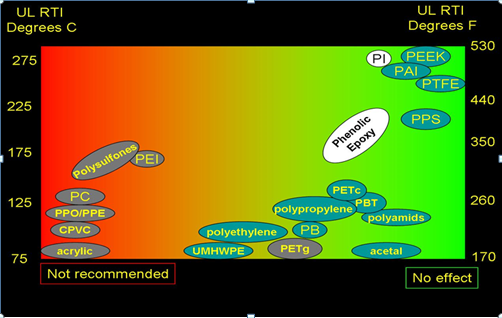

Plastic Washers - Graph 1


Spacers:  A very large amount of plastic washers are used as spacers to electrically insulate, distribute fastener loads, reduce vibration, or keep metal from metal contact in markets such as tools, seat belts, parachutes, medical prosthetics, doors, shutters, windows, walls and hardware, hinges and shims to name a few. The materials may have some amount of wear resistance required, or low friction. However in general it is simply the compressive requirement of the application at temperature that become the deciding characteristic. Of course one should also consider if the washer will see sunlight, as most plastics have poor weathering resistance unless modified to handle such environments. If weathering is a concern radiation resistant plastics like PVDF or Ultem poyether imide are good choices, or acrylic if there is little requirement for chemicals, heat, or strength.

Bearings:  Bearing applications for plastic washers is the third use functional use for these parts. Anything from high speed thrust washers to low speed high compressive bearings are made from flat plastic washers. We find these in conveyors, pumps, compressors, engines, heavy equipment to name a few. PV limits are the critical property in most applications, as well as abrasion resistance. Generally crystalline plastics are better than amorphous plastic for these types of applications. The Pressure equals the bearing force divided by the inside diameter times the length of the bearing surface at the centerline (OD-ID)/2:

P= F/(D X L)

The velocity is equal to the inside diameter times π times the revolutions per minute (rpm):

V= Dπ   X rpm

As can be seen in the table below, PV limits are heavily affected by composition. Adding glass fiber to PTFE increases it PV limit be a factor of 10.

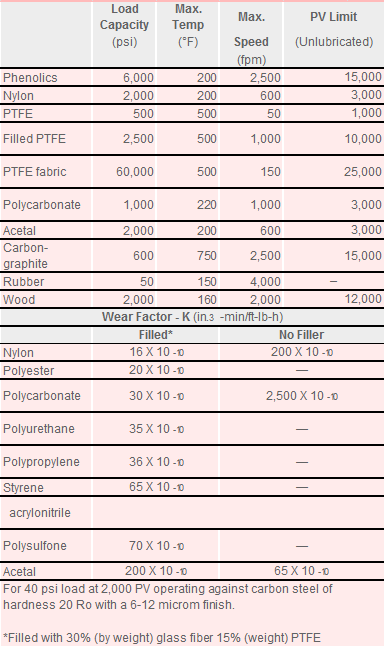

Plastic Washers - Table 1

The temperature range and PV limits are shown below for several other materials we maintain in inventory for use in these types of applications.

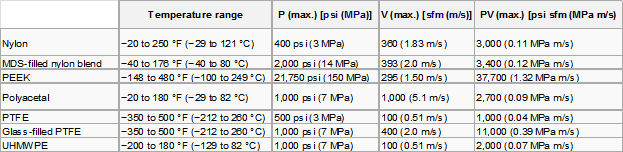

Plastic Washers - Table 2
